Edge Trim Opener

Edge Trim Opener

Description:

Edge Trim Opener is For Recycling Lateral Edge Trims of Non Woven (Both Roll and Pieces Form) into Fiber Which can be Reintroduced into the Production System, Thus Optimizing the Utilization of the Raw Materials to Save Cost.

Working Width: 300MM / 500MM / 1000MM / 1500MM

Applicable For Processing Needle Punching Type, Hot Air Through Type, Spunlace Type, Thermal Bonded Type, Hydro-entangled Type, Spunbond Type Etc Output Fibers are Used For Industry Of Automotive, Medical Products, Sanitary Products, Filtration, Furniture Felt, Insulation And Other Applications Machine can be In-line Used Or Out of Line Used

Our Machines also can be used to Recycle Woven Or Knitting Fabric For Hometex Filling Purpose

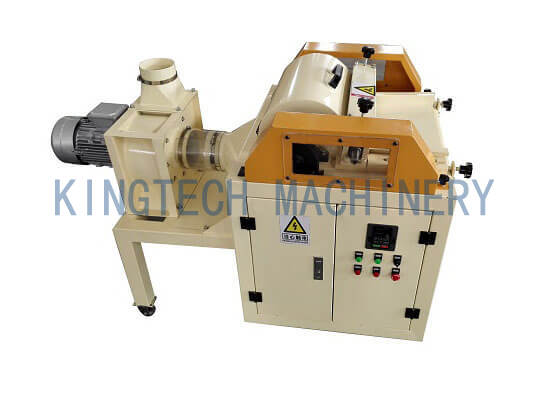

Model QJK300 (Laboratory Type)
Dia Roller 200mm
Working Width 300mm
Feeding Motor With Inverter 0.75KW
Fan Motor 1.5KW
Main Motor 2.2KW
Production 10-15KG/H
Manual/Automatic Feeding

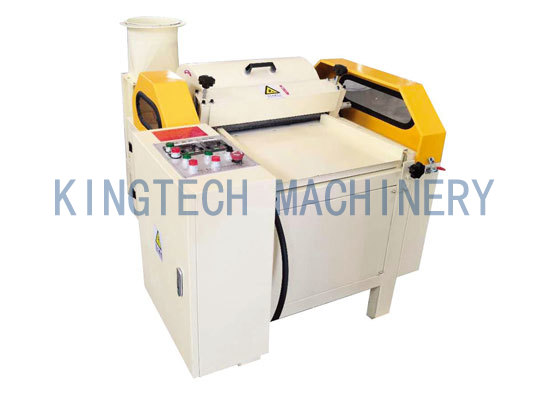

Model QJK500
Dia Roller 300mm
Working Width 500mm
Feeding Motor With Inverter 1.5KW
Fan Motor 2.2KW
Main Motor 4KW
Production 30-50KG/H
Manual Feeding

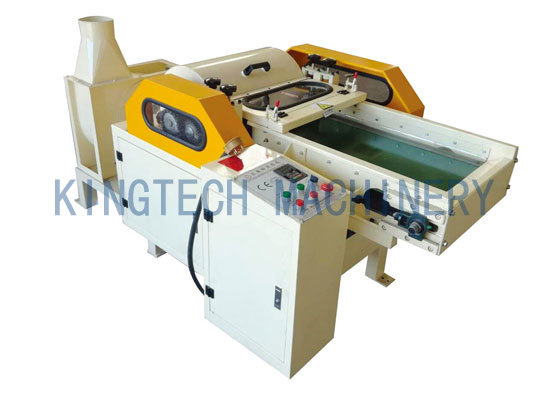

Model QJK500L
Dia Roller 300mm
Working Width 500mm
Feeding Motor With Inverter 1.5KW
Fan Motor 2.2KW
Main Motor 4KW
Production 30-50KG/H
Automatic Feeding
Model QJK500L
Dia Roller 300mm
Working Width 500mm
Feeding Motor With Inverter 1.5KW
Fan Motor 2.2KW
Main Motor 4KW
Production 30-50KG/H
Manual Feeding
Using Stainless Steel
(Free from Any Rust, Suitable For Sanitary/Medical Material)

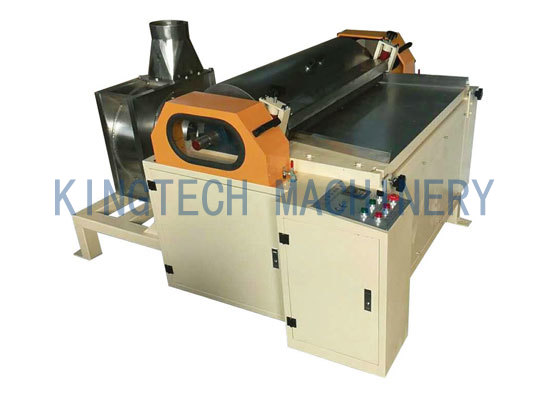

Model QJK1000X
Dia Roller 300mm
Working Width 1000mm
Feeding Motor With Inverter 1.5KW
Fan Motor 5.5KW
Main Motor 18.5KW
Production 50-110KG/H
Manual Feeding

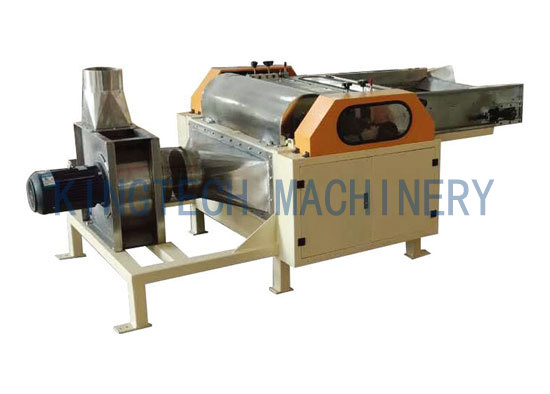

Model QJK1000XL
Dia Roller 300mm
Working Width 1000mm
Feeding Motor With Inverter 1.5KW
Fan Motor 5.5KW
Main Motor 18.5KW
Production 50-120KG/H
Manual Feeding

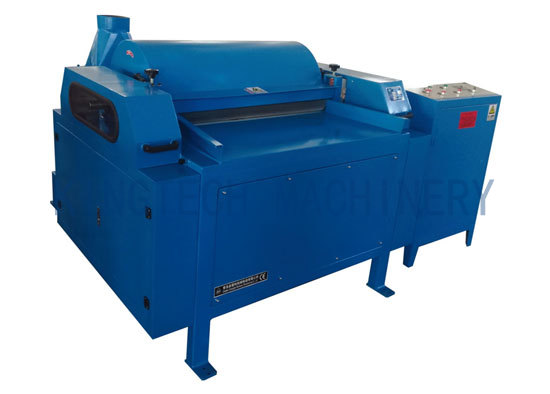

Model QJK1000
Dia Roller 500mm
Working Width 1000mm
Feeding Motor With Inverter 1.5KW
Fan Motor 5.5KW
Main Motor 18.5KW
Production 70-110KG/H
Manual Feeding

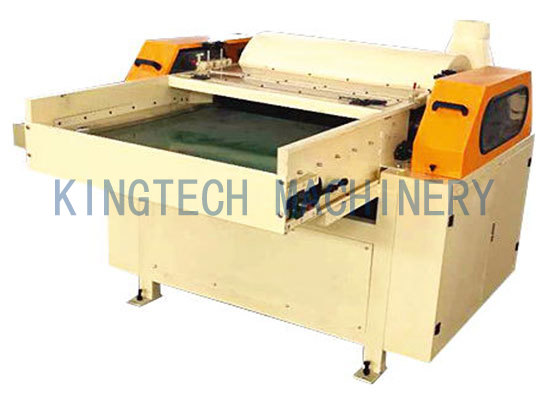

Model QJK1000L
Dia Roller 500mm
Working Width 1000mm
Feeding Motor With Inverter2.2KW
Fan Motor 5.5KW
Main Motor 18.5KW
Production 50-120KG/H
Automatic Feeding

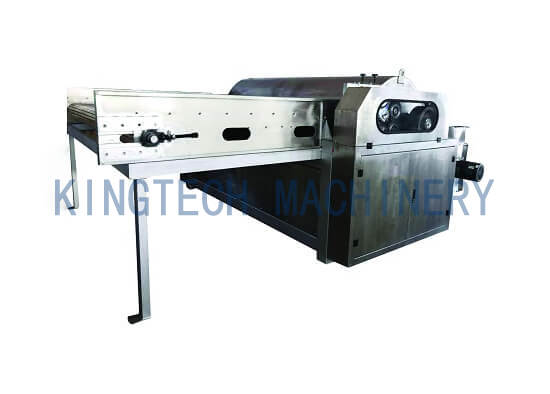

Model QJK2500L
Dia Roller 600mm
Working Width 2500mm
Feeding Motor With Inverter 4KW
Fan Motor 7.5KW
Main Motor 30KW
Production 500-1000KG/H
Automatic Feeding

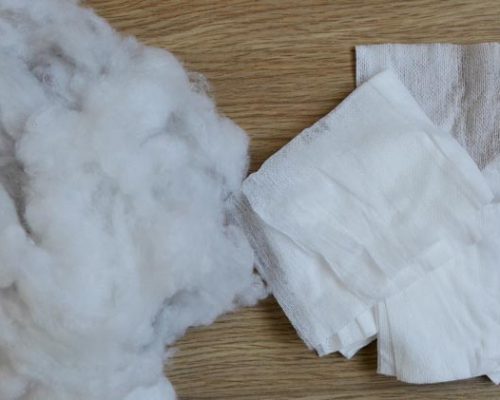

Spunlace Nonwoven Cloth

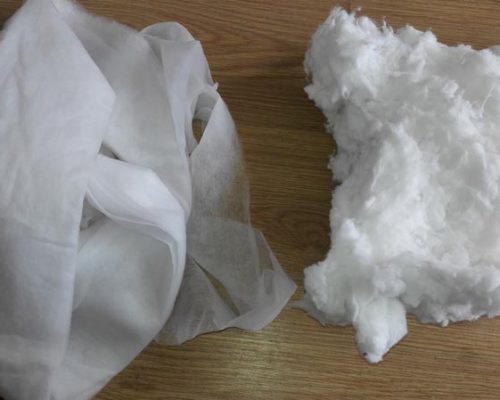

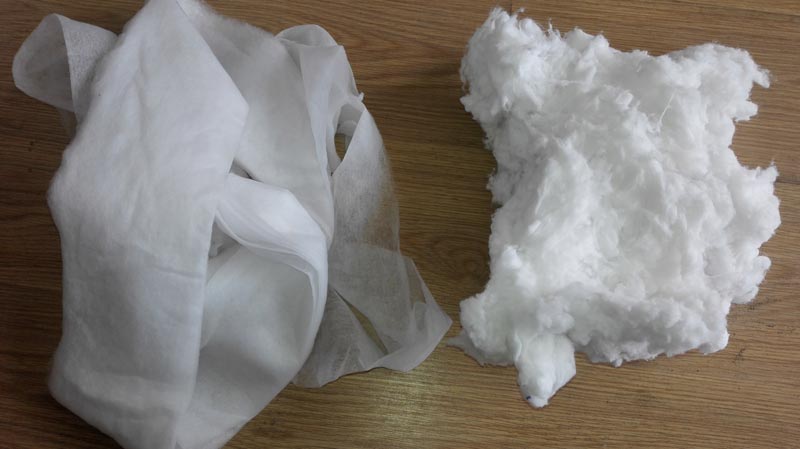

Hot Air Through Fabric

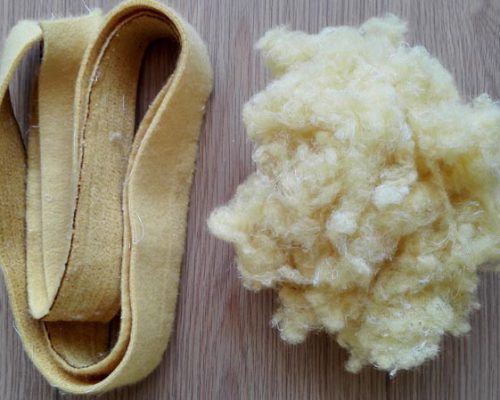

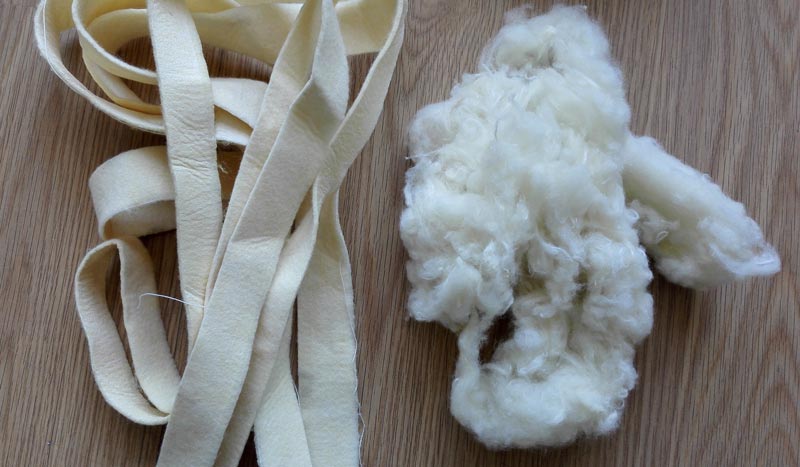

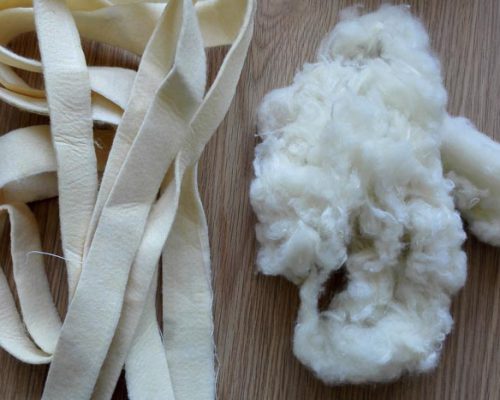

Filter

Filter

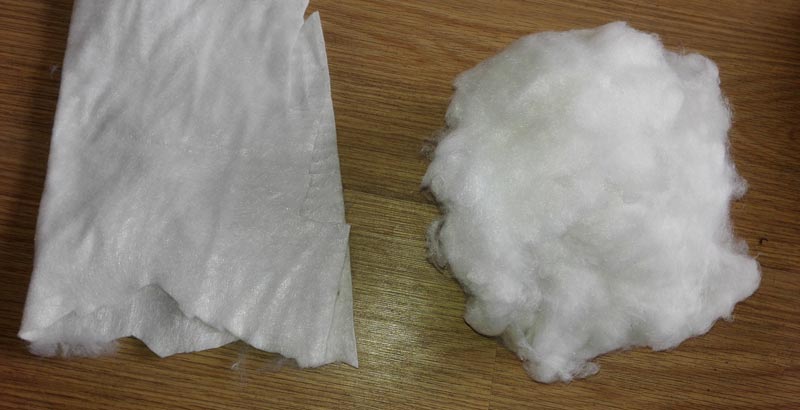

Filament Geo Fabric

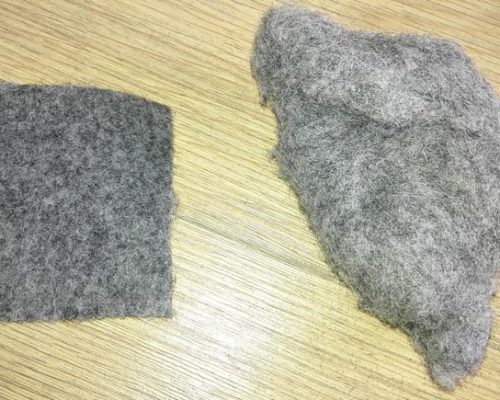

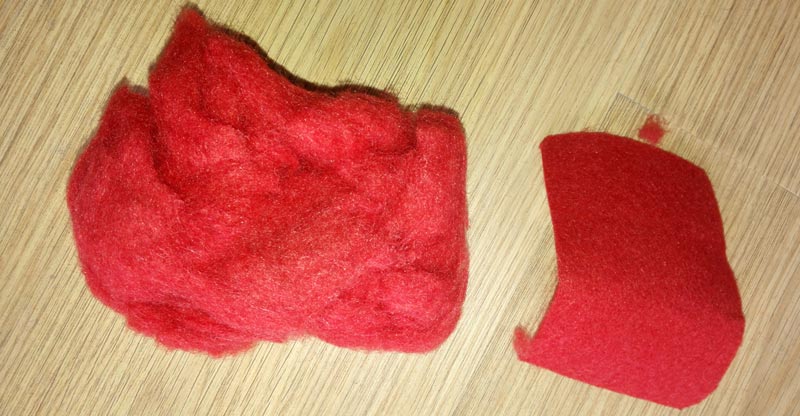

Carpet

Carpet

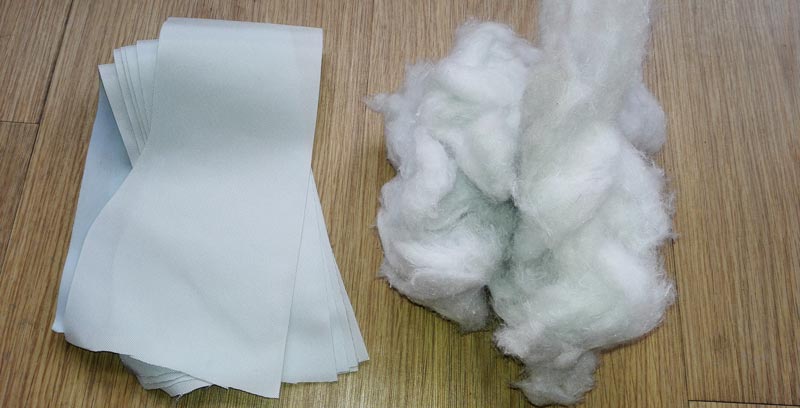

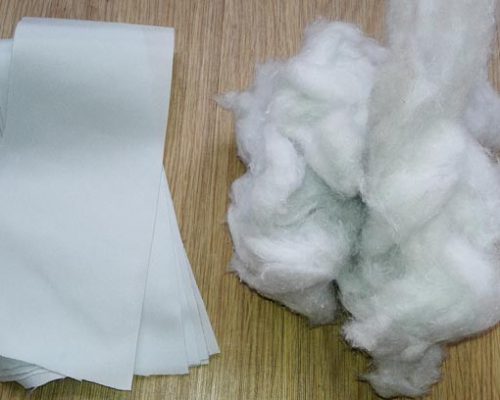

Auto Air Bag

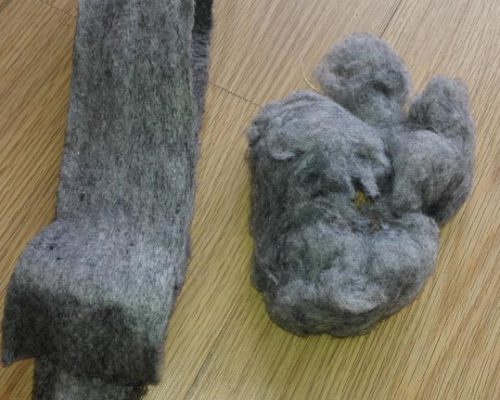

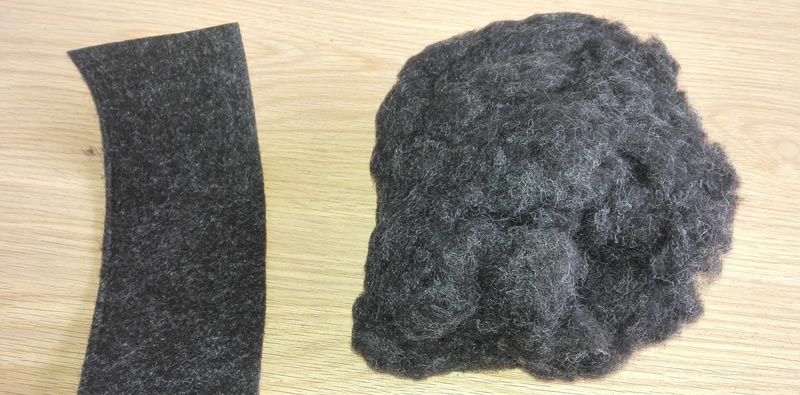

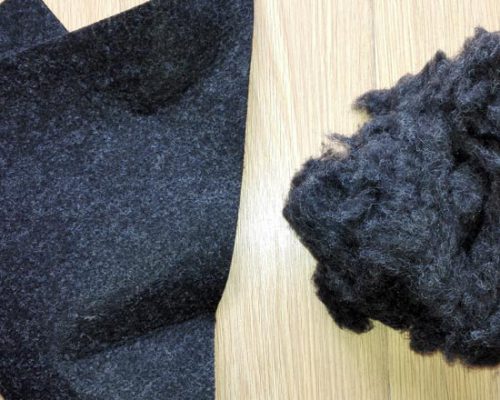

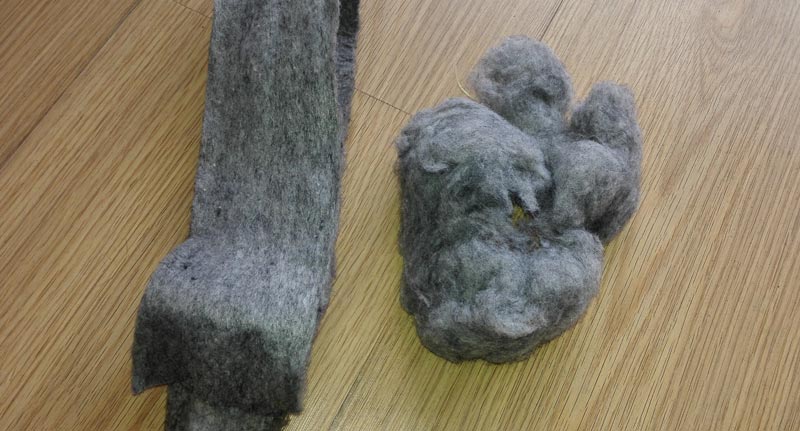

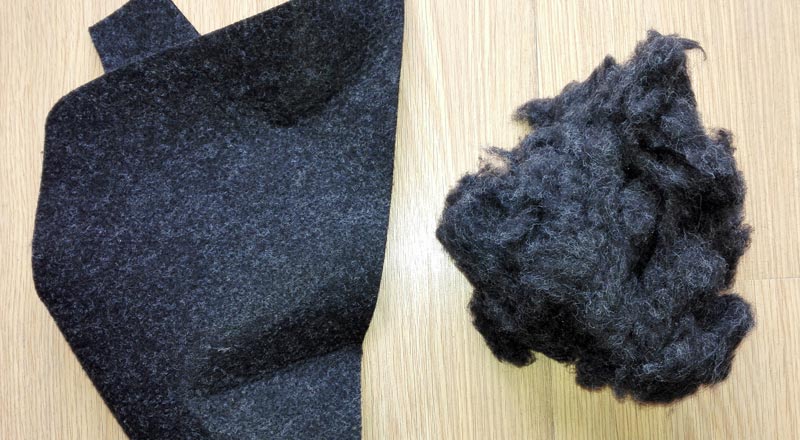

Automotive Interior Nonwoven Fabric

Automotive Interior Nonwoven Fabric

Automotive Interior Nonwoven Fabric

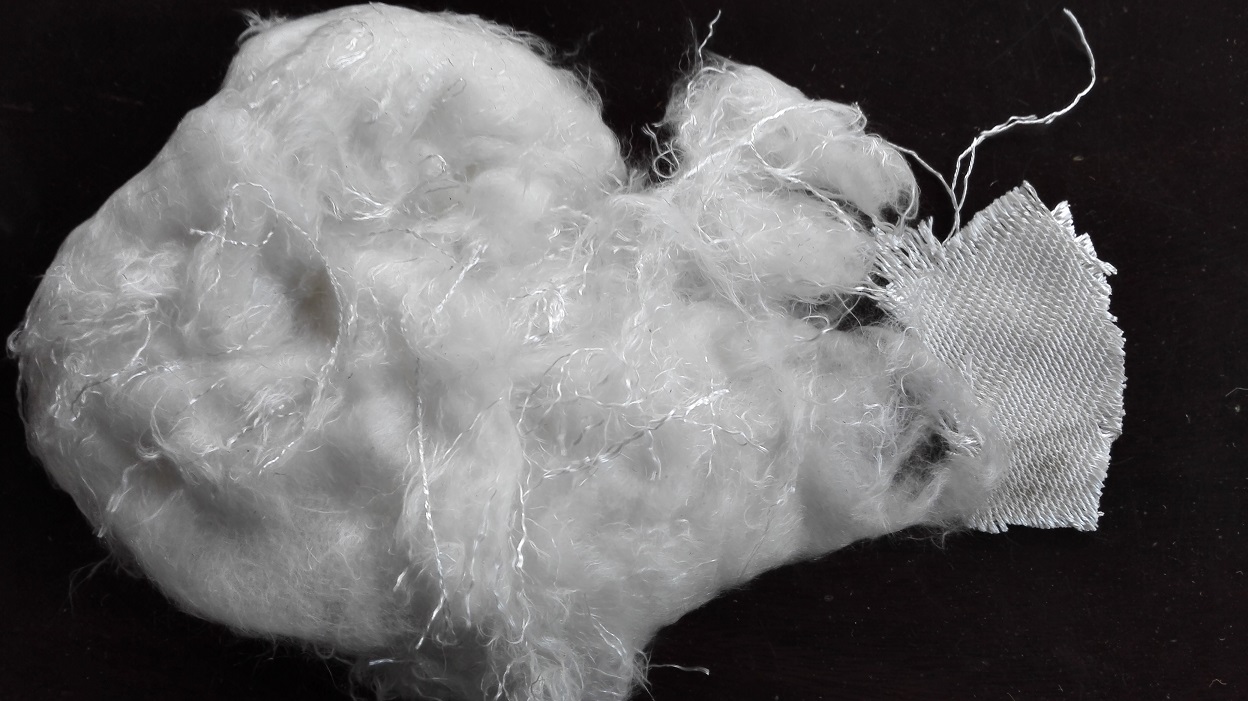

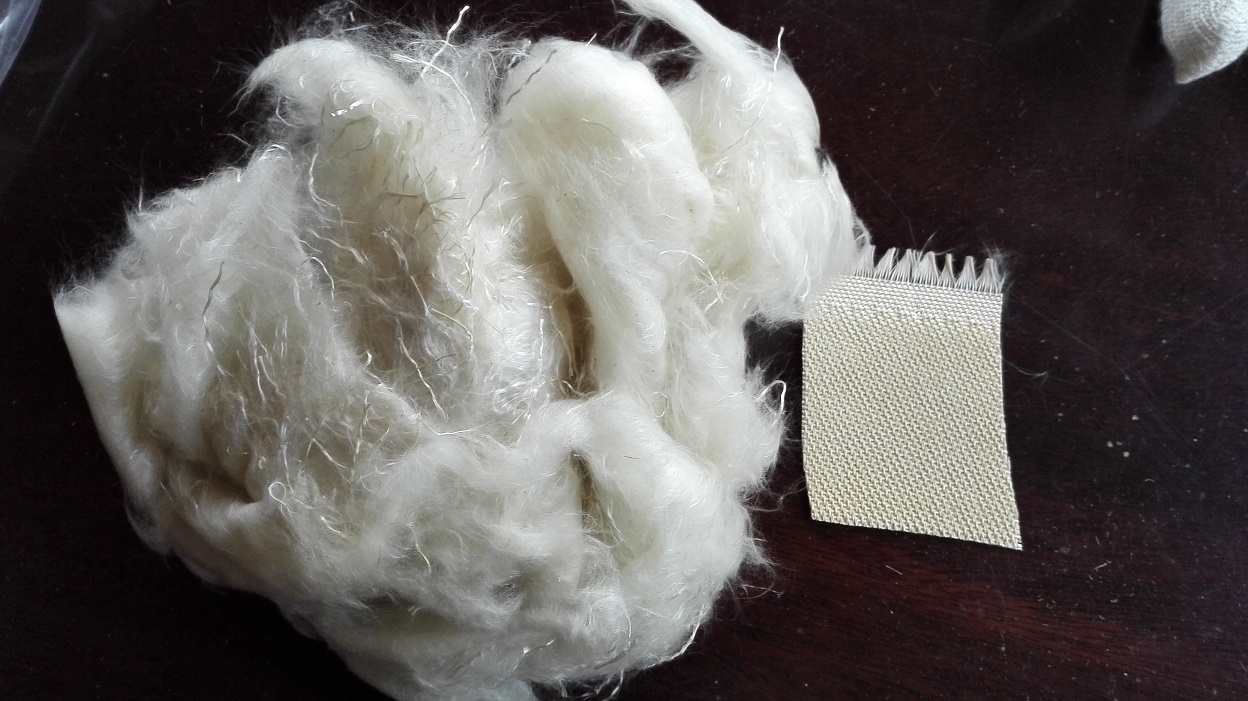

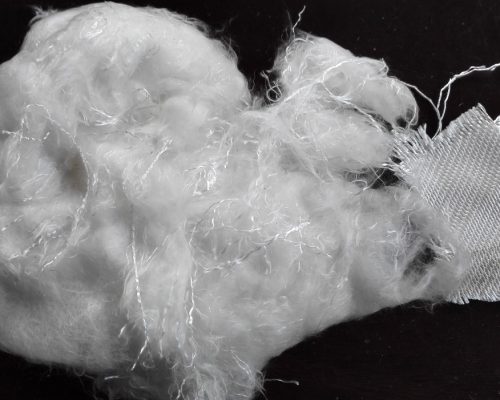

Glass Fiber

Glass Fiber

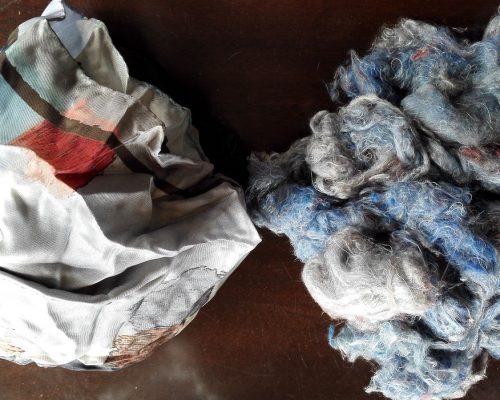

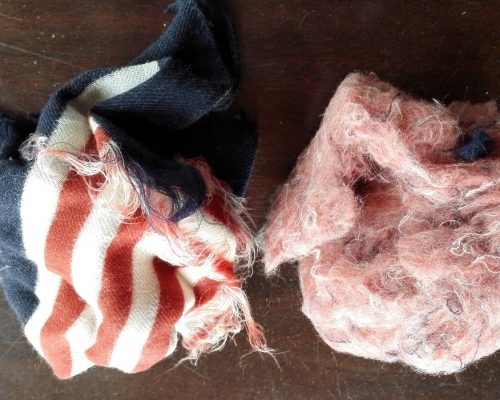

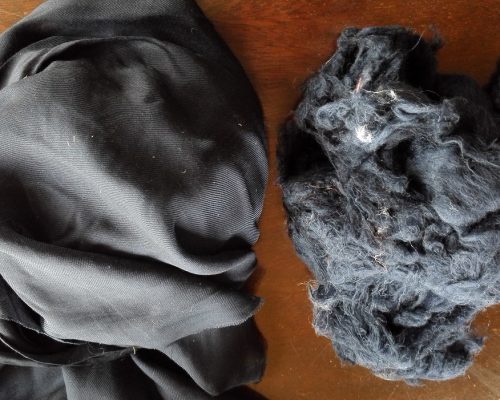

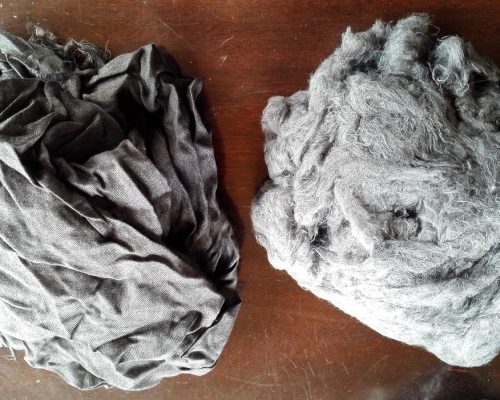

Hometex Filling

Hometex Filling

Hometex Filling

Hometex Filling

Hometex Filling

Hometex Filling
